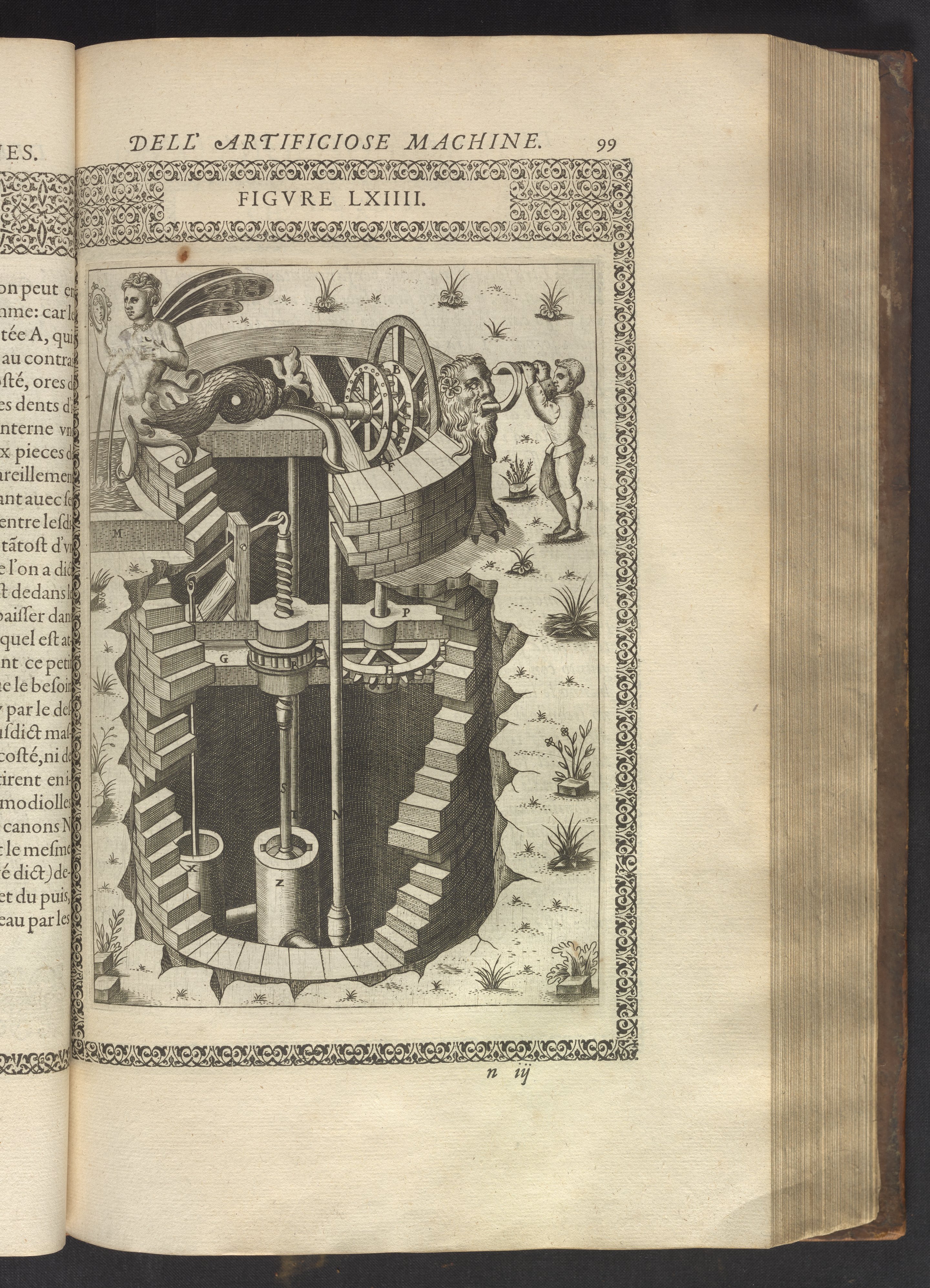

Plate 64: Single-person-operated device for drawing water from a well

  • 1588

Rights

Public Domain

Download selected image

PDFSmall JPG1200 x 1662px — 502 KBLarge JPG2880 x 3988px — 2.8 MBFull-sized JPG6312 x 8740px — 11.3 MBOriginal fileTIFF — 6312 x 8740px — 158 MB
View
Public
Domain
PDF
Download PDF

The well is decorated with a monstrous female figure who gazes in the mirror and dispenses water from her breasts.

Mechanics: hand crank; force pump; conical valve; double interrupted crown gears and lantern gear; spur gear and lantern; horizontal working beam; motion converter (rotating to linear); flywheel.
